TeO2 crystals - the most effective material and components for laser beam control and characteristics changing

Devices on TeO2 blocks can be effectively and successfully used for signal modulation (AO Modulators), deflection (AO Deflectors) and selection (AOTF).



Polarizing optics based on birefringence crystal properties and standard materials are Calcite (VIS-NIR), Rutil (NIR) but we'd like to offer to use high stable quality TeO2 material.
This new for Polarizing optic material can substitute both standard materials and can be successfully used for VIS – MIR.


Some main TeO2 characteristics & properties


Colorless synthetic single crystal
Symmetry Tetragonal, 422 D4
Lattice distances a=4.8122A; c=7.6157A
Molecular weight 159.5
Density, g/cm3 5.99 ± 0.03
Melting point 733°C
Transmission 0.35-5μm
Power capability (1064nm, 12ns, 1Hz) 200MWt/cm2 or 2x108Wt/cm2

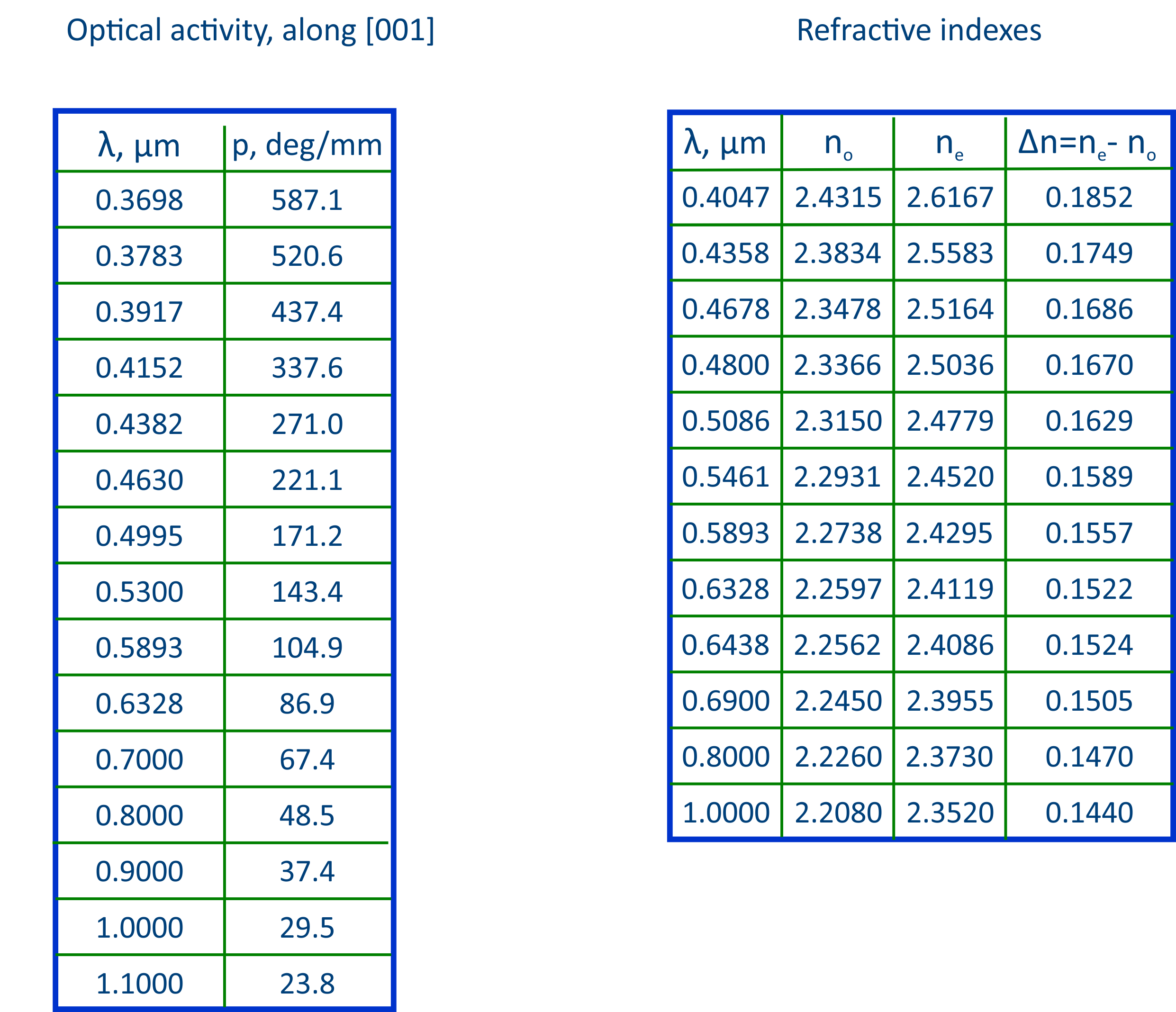

Optical rotation 85°- 633mkm, 146°- 531mkm, 186°- 488mkm
Optical Wavelength 514nm, 633nm, 1064nm, 1330nm
Birefringence index Δn= ne- no= 0.153@633nm





Dielectric permittivity: ε11 = 22.9; ε33 = 24.7
Elastic constants, 10-10 N/m2: c11=5.57; c33=10.58; c44=2.65; c66=6.59; c12=5.12; c13=2.18

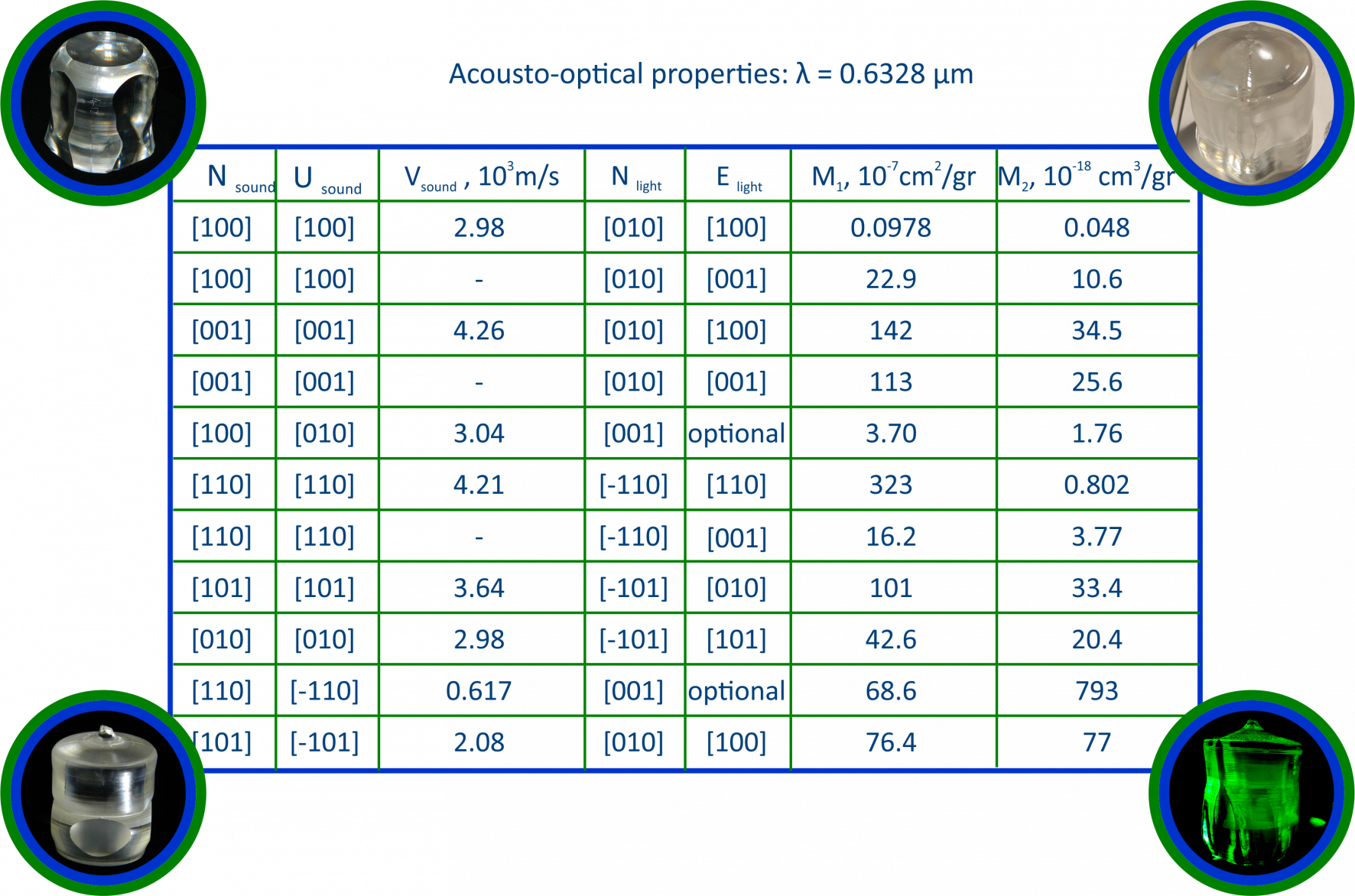

Photoelasticity coefficients for λ = 0.6328 μm:
p11=0.0074; p12=0.187; p13=0.340; p31=0.0905; p33= 0.240; p44= – 0.17; p66= – 0.0463
