TeO2 crystals - Stock List

Crystal ID

Description

Price USD/EUR  per pcs.

Q-ty, pcs.


TO-12-30

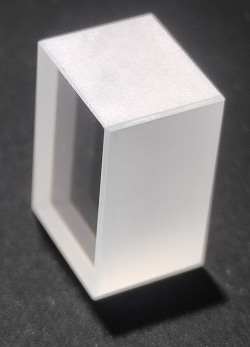

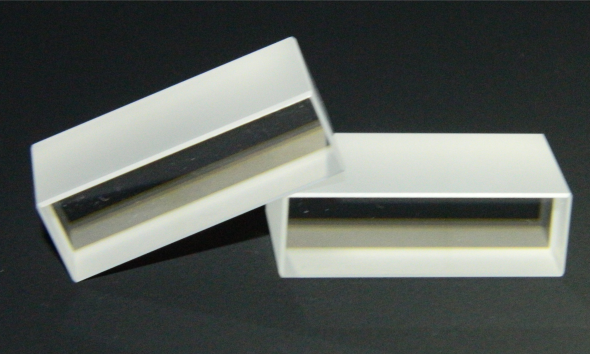

TeO2 crystals

9.0 mm (001) x 30.0 mm (1-10) x 12.5 mm (110)

Size tolerance: +0.1/-0.0 mm,
Commercial polishing in (110) direction
Other surfaces: ground Fine grind 20 μm grit
X-Ray orientation: 0˚± 5min
All edges chamfered 0.2-0.5mm x 45˚

310

42

TO-8.5P

TeO2 crystals

15.0 mm (001) x 10.0 mm (1-10) x 8.5 mm (110)

Size tolerance: +0.2/-0.0 mm,
Commercial polishing in (110) direction
Other surfaces: ground Fine grind 20 μm grit
X-Ray orientation: 0˚± 5min
All edges chamfered 0.2-0.5mm x 45˚

115

2

TO-6.8P1

TeO2 crystals

10.0 mm (001) x 15.0 mm (1-10) x 6.8mm (110)

Size tolerance: +0.2/-0.0 mm,
Commercial polishing in (110) direction
Other surfaces: ground Fine grind 20 μm grit
X-Ray orientation: 0˚± 5min
All edges chamfered 0.2-0.5mm x 45˚

90

2

TO-6.8P2

TeO2 crystals

15.0 mm (001) x 10.0 mm (1-10) x 6.8 mm (110)

Size tolerance: +0.2/-0.0 mm,
Commercial polishing in (110) direction
Other surfaces: ground Fine grind 20 μm grit
X-Ray orientation: 0˚± 5min
All edges chamfered 0.2-0.5mm x 45˚

90

4

TO-9-14

TeO2 crystals

9.0 mm (001) x 8.2 mm (1-10) x 14.30 mm (110)

Size tolerance: +0.2/-0.0 mm,
Commercial polishing in (110) direction
Other surfaces: ground Fine grind 20 μm grit
X-Ray orientation: 0˚± 5min
All edges chamfered 0.2-0.5mm x 45˚

95

7

Prices are indicated on EWX Dnipro (Ukraine) basis

Delivery via
- UkrPost/EMS Service - Delivery basis CPT Consignee's delivery address
- DHL courier mail on Customer's account - Delivery basis EXW Dnipro (Ukraine)

Shipment immediately upon payment receipt
